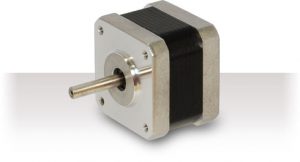

Stappen motor Nema17
Stappen motor Nema17, 0,28Nm, 1,3A Rms, L=34mm; Model M1173021
Beschrijving
Stappen motor Nema17, 0,28Nm, 1,3A Rms, L=34mm; Model M1173021.
Technical Data
| Bipolar Holding Torque | 0,28Nm (39oz-in) |
| Bipolar Phase Current | 1,3Arms |
| Rotor Inertia | 34g-cm2 (0,186oz-in2) |
| Length | 34mm (1,34inches) |
| Weight | 240g (8,47oz) |
| Flange | NEMA 17 42,3×42,3mm (1,67×1,67inches) |
| Leads Number | 4 |
| Full step angle | 1,8° |
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
