Stappen motor NEMA23, 1,4Nm

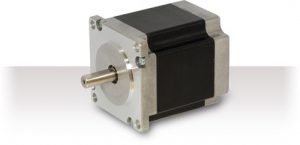

Stappen motor NEMA23, 1,4Nm, 3Arms, 64mm; Model M1233051.
Beschrijving
Stappen motor NEMA23, 1,4Nm, 3Arms, 64mm; Model M1233051.
NEMA23 stepper motors;
Some models are offered with two different wirings to best fit in the application.
The motor shaft can be supplied with a diameter of 6,35mm (0,250In) or 8mm (0,315In) with flattening (recommended for motors with torque over 1,5Nm 213In).
The models M1233070 and M1233071 supply the highest torque amongst the motors with NEMA23 flange available on the market
Technical Data
| Bipolar Holding Torque | 1,4Nm (198oz-in) |
| Bipolar Phase Current | 3Arms |
| Rotor Inertia | 380g-cm2 (2,07oz-in2) |
| Length | 64mm (2,52inches) |
| Weight | 850g (29,98oz) |
| Flange | NEMA 23 56,4×56,4mm (2,22×2,22inches) |
| Leads Number | 4 |
| Full step angle | 1,8° |
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
